RFID equipment identity
Each toolbox, tablet, radio or critical maintenance asset is assigned a durable RFID identity.
- EPC and serial matching
- Durable tag selection
- Asset status
Operational overview
Controlled tool custody
Maintenance teams use many shared tools across aircraft, field, production or technical service operations. The main risk is not only losing a tool; it is losing the relationship between the tool, user, work order, location, time and return status.
Tool tracking scope
Kiosk check-out
The technician passes equipment through the RFID kiosk; the screen lists detected tools and asks for user approval.
- Automatic RFID read
- Tool list on screen
- Check-out approval
Personnel verification
Technicians can identify themselves with user entry, badge or MIFARE card reader according to site rules.
- User ID
- Badge/MIFARE
- Role control
Work order context
Toolbox movements can be linked with aircraft, work order, maintenance task, project or location context.
- Aircraft or job
- Maintenance task
- Operational reason
Check-in and stock return
Returning tools are read again, matched with the open assignment and returned to available stock.
- Open assignment match
- Return approval
- Stock status
Offline continuity
If the network is unavailable, operations are queued locally and synchronized when connectivity returns.
- Local queue
- Retry logic
- Conflict control

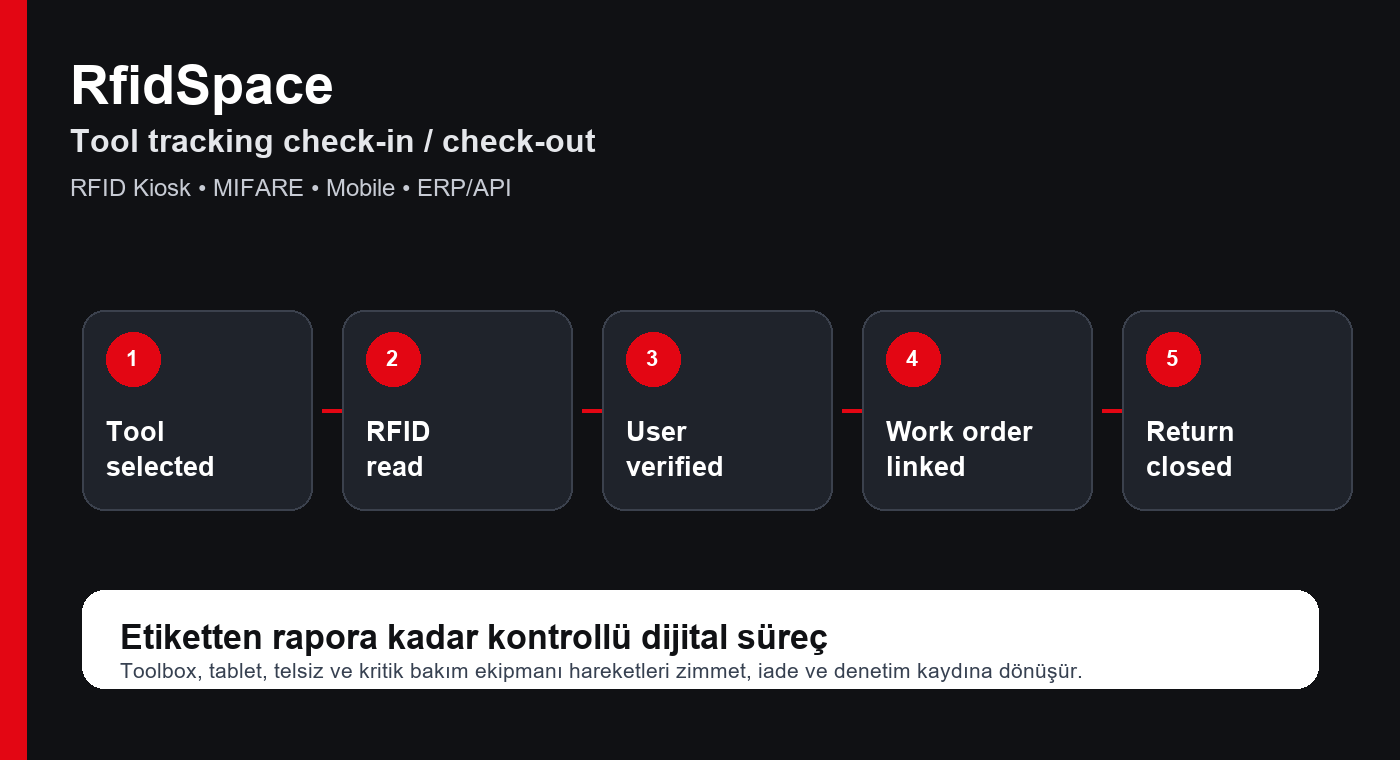

Check-out and check-in workflow
1. Tool is selected
Technician takes the required tool from cabinet or storage.
2. RFID kiosk reads
The kiosk antenna reads EPC/serial data and filters duplicate reads.
3. User is verified
The technician identifies with badge, MIFARE card or configured login method.
4. Assignment is confirmed
The system links tool, user, job context and time, then creates the check-out record.
5. Return closes the loop
Returned tools are matched with open records and integration status is updated.
Reports and dashboards
Assignment reports
- Open assignments
- User-based tool records
- Aircraft/work-order assignments
- Late returns
Equipment reports
- Tool status
- Last movement
- Maintenance status
- Lost/found analysis
System reports
- Kiosk health
- Reader status
- Last communication
- Version monitoring
Integration reports
- Successful transfers
- Failed transfers
- Runtime duration
- Retry queue
Integration and architecture
Maintenance/ERP integration
Check-out and check-in events can be sent to the enterprise maintenance or ERP platform through secure services.
- User
- Tool EPC/serial
- Operation type
Planned data synchronization
Aircraft, work order, location, personnel and asset master data can be synchronized on schedule.
- Work orders
- Personnel
- Tool catalog
Database and retention
Assignment, movement, log and integration records are kept according to project retention policy.
- Movement history
- Audit trail
- Retention policy
Security model
Role-based access, authorized device definitions and secure API communication protect operational records.
- Role-based access
- Device authorization
- Secure API
Operational success criteria
| Check-out time | < 5 min |
|---|---|
| Check-in time | < 5 min |
| Manual intervention | < 10% |
| Read/assignment accuracy | 98%+ |
| Integration transfer | Auditable and complete |
Frequently asked questions
Can a technician return the tool to any shelf?
Yes, if the operation is modeled by RFID identity instead of fixed shelf dependency. Optional shelf or zone rules can still be added.
Can handheld readers be used as well as kiosk points?
Yes. Handhelds can support item search, full/partial counts and field validation scenarios.
What happens during network outage?
Offline mode keeps records locally and synchronizes them with conflict checks after connectivity is restored.
